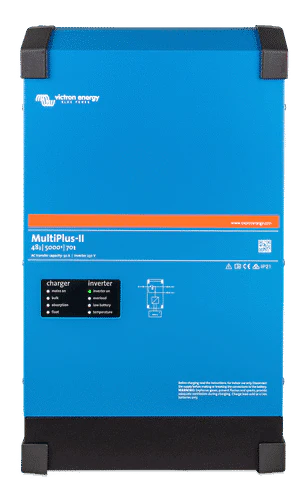

Victron Energy MultiPlus-II 48/5000/70-50 230V

Features

• A MultiPlus, plus ESS (Energy Storage System) functionality.
• PowerControl and PowerAssist – Boosting the capacity of grid or generator power.
• ESS: Energy Storage Systems.
• On-site monitoring and control.
• Remote configuring and monitoring.
• SA: NRS 097 certified and COCT Certified

MultiPlus-II 48/5000/70-50 Specifications

• PowerControl & PowerAssist: Yes
• Transfer switch: 50A.
• Maximum AC input current: 50A.

Inverter

• DC Input voltage range: 38 – 66 V.
• Output: Output voltage: 230 VAC ± 2%; Frequency: 50 Hz ± 0,1%.
• Cont. output power at 25°C: 5000 VA.
• Cont. output power at 25°C: 4000 W.
• Cont. output power at 40°C: 3700 W.
• Cont. output power at 65°C: 3000 W.
• Maximum apparent feed-in power: 4000 VA.
• Peak power: 9000 W.
• Maximum efficiency: 95 %.
• Zero load power: 18 W.
• Zero load power in AES mode: 12 W.
• Zero load power in Search mode: 2 W.

Charger

• AC Input voltage range: 187 – 265 VAC.
• Input frequency: 45 – 65 Hz.
• Charge voltage ‘absorption’: 57,6 V.
• Charge voltage ‘float’: 55,2 V.
• Storage mode: 52,8 V.
• Maximum battery charge current: 70 A.
• Battery temperature and voltage sensor: VE.Bus Smart dongle (optional).

General

• Auxiliary output: Yes (32 A) Directly connected to the AC input.
• Programmable relay: Yes.
• Protection: a – g (Please see specifications sheet.
• VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
• General purpose com. port Yes, 2x.
• Remote on-off: Yes.
• Operating temperature range: -40 to +65°C (fan assisted cooling).
• Humidity (non-condensing): max 95%.

Enclosure

• Material & Colour: Steel, blue RAL 5012.
• Protection category: IP22.
• Battery-connection: Two M6 bolts.
• 230 V AC-connection Screw terminals: 13 mm² (6 AWG).
• Weight: 29 kg.
• Dimensions (hxwxd): 565 mm x 323 mm x 148 mm.
