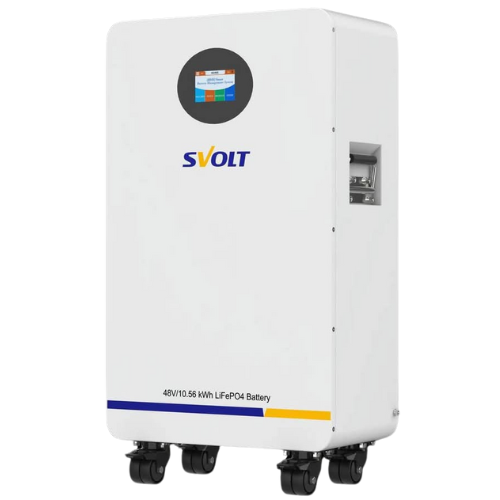

SVolt 48V 220AH 10.56KWH Lithium Battery SCN48220

The SVolt 48V 220AH 10.56KWH Lithium Battery SCN48220 is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

The SVOLT A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.

Features – SVolt 48V 220AH 10.56KWH Lithium Battery SCN48220:

A-Grade Cell Technology
Maintenance-free
Environmental Friendly
Wide Variety of Markets
Renewable Energy
Built-in Battery Management System
5-year Warranty

Specifications – SVolt 48V 220AH 10.56KWH Lithium Battery SCN48220:

Energy: 10.56kWh
Battery Type-Chemistry: LiFePO4
Nominal Voltage: 48V
Nominal Capacity: 220Ah
Rated Energy: 10.56kWh
Terminal Type: SCREW
Case Material: SPCC
BMS Built-in: Yes
LCD Screen

Internal Resistance: <25mΩ Efficiency – Round Trip: >95%

Self Discharge per Month: <3% Max Parallel Connectors: 16Pcs Series Connections: Not Allowed Cycle Life: >6000 Cycles
Discharge Temperature: -20°C to 60°C
Charge Temperature: 0°C to 55°C
Storage Temperature: -10°C to 30°C
Voltage Window: 40.5V – 54.75V
Recommended Charge Voltage: 52.5 ±0.20V
Max Charge Voltage: 54.75 ±0.20V
Recommended Charge Current: 50A
Max Continuous Charge Current: 200A
Recommended Discharge Voltage: 42 ±0.20V
Max Discharging Voltage: 40.05 ±0.20V
Max Continuous Discharge Current: 200A
Peak Discharge Current: 250A
Dimensions: L 794 x W 499 x H420 mm
Weight: 101.8Kg
