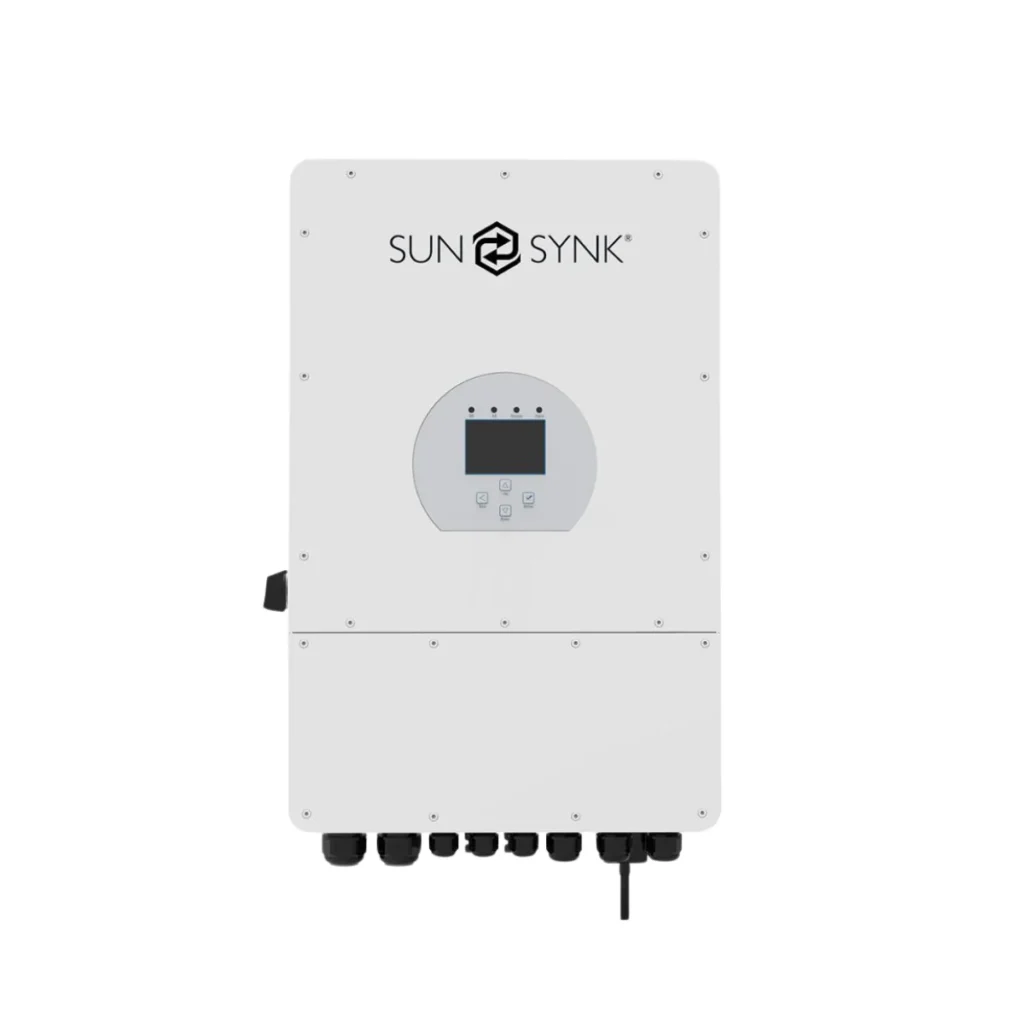

Sunsynk 12kW, 48Vdc Single Phase Hybrid Inverter with WIFI Included

• SUNSYNK 12kW Hybrid Inverter (1 Phase) – SUNSYNK-12K-SG02LP1
• Model SUNSYNK-12K-SG02LP1
• Wi-Fi Ready – works via Sunsynk App.
• Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
• Grid Type: Split Phase; 2/3 Phase; Single Phase
• Protection Degree: IP65
• Noise Level: <30dB
• Maximum Charge/Discharge Current: 220A
• Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
• Maximum DC Input Power: 13000W
• MPPT Voltage Range: 150-425V
• 3 x MPPT
• Start-up Voltage: 125V
• Rated AC Output Active Power: 10000W
• Maximum AC Output Active Power: 11000W
• AC Output Rated Current: 45.5A/43.5A
• Backup UPS: 6ms Auto switchover time.
• Maximum Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%
• Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
• Battery Voltage Range: 40-60V
• Communication with BMS: CAN/RS485
• Smart Cooling
• Operation Temperature: -45°C to 60°C, >45°C Derating
• Installation Type: Wall Mounted.
• Weight: 32Kg
• Dimensions (W x H x D): 420 x 670 x 233 mm
