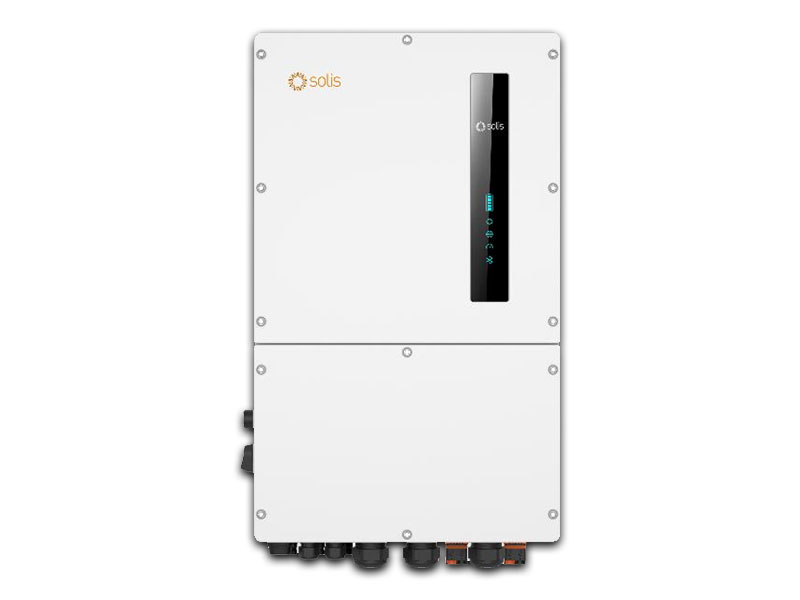

Solis 50kW High Voltage 3-Phase Hybrid Inverter – Powered by Solis

Model: S6-EH3P50K-H

The Solis 50kW Hybrid Inverter, produced and powered by Solis, offers robust and versatile energy solutions for both on-grid and off-grid applications.

Solis 50kW Hybrid Inverter Key Features:

Multi-MPPT Design: Equipped with 4x MPPTs, this inverter supports up to 8x strings with a capacity of 20A for each string, maximizing energy capture from your solar panels.
High Charge/Discharge Capacity: Each port has a maximum charge and discharge current of 70A, with dual ports supporting up to 140A, allowing independent control for each battery port.
Ample PV Input Power: Supports up to 96kW of usable PV input power, offering an impressive 200% PV capacity.
Peak Shaving Control: Features peak shaving control in both “self-use” and generator modes to optimize energy usage.
Overload Support: The backup port supports 160% overload for short durations of up to 2 seconds, ensuring reliability during peak demand.
Generator Connectivity: Offers multiple generator connectivity methods, including automatic generator On/Off control.
Parallel Operation: Allows for parallel operation of up to 6x 50kW Solis inverters, providing scalability for larger systems.
Grid-Tied Functionality: This inverter can function as a grid-tied inverter without a battery connection when connected to the power grid.
Wide Voltage Compatibility: Compatible with a wide voltage range, accommodating various types of batteries.

Solis 50kW Hybrid Inverter Specifications:

Weight: 73 kg
Dimensions: 530 x 880 x 290 mm
Inclusions: Includes Wi-Fi module and Chint
