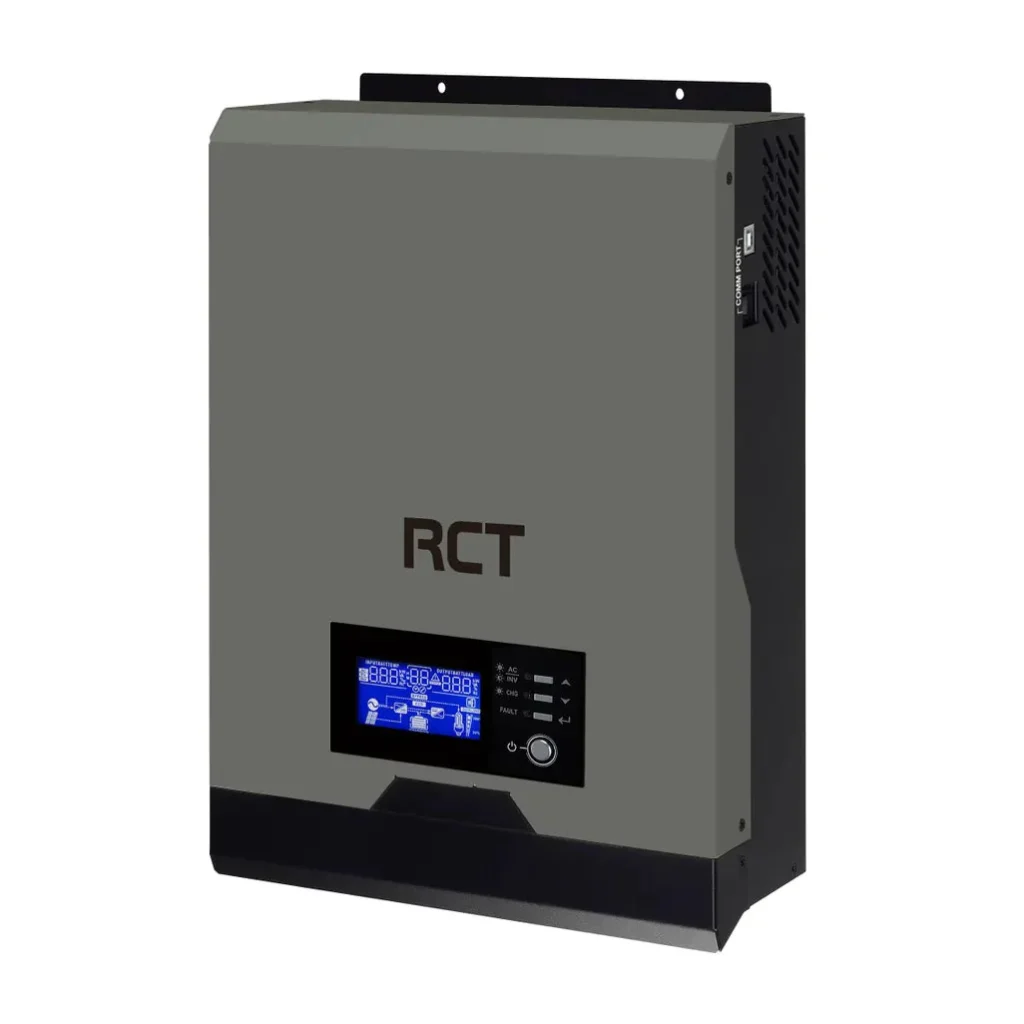

RCT Axpert VM 1K12 1kVA 1kW 12V Hybrid Inverter

RCT Axpert VM 1K12 1kVA 1kW 12V Hybrid Inverter

Solar Charger

  • Maximum PV Array Power: 500W.
  • MPPT Range @ Operating Voltage: 17VDC – 80VDC.
  • Maximum PV Array Open Circuit Voltage: 102VDC.
  • Maximum Solar Charge Current: 40A.
  • Maximum AC Charge Current: 25A.
  • Maximum Charge Current: 60A.

Physical

  • Dimesion: 88mm x 225mm x 320mm.
  • Weight: 4.4kg.

Operating Environment

  • Humidity: 5% to 95% Relative Humidity(Non-condensing).
  • Operating Temperature: -0°C – 55°C.
  • Storage Temperature: -15°C – 60°C.

Original price was: £453.00.Current price is: £402.00.

Category Tag

Related products

RCT Axpert VM 1K12 1kVA 1kW 12V Hybrid Inverter

Features:

  • Cold start function.
  • Pure sine wave inverter.
  • Auto restart while AC is recovering.
  • Built-in MPPT solar charge controller.
  • Overload and short circuit protection.
  • Compatible to mains voltage or generator power.
  • Selectable charging current based on applications.
  • Configurable AC/Solar input priority via LCD setting.
  • Smart battery charger design for optimized battery performance.
  • Selectable input voltage range for home appliances and personal computers.

Technical specifications:

  • Model: RCT-AXPERT 1K.
  • Rated Power: 1000VA/1000W.
  • Warranty: 24 months

Input

  • Voltage: 230VAC.
  • Selectable Voltage Range: 170-280VAC(For Personal Computers) 90-280VAC (For Home Appliances).
  • Frequency Range: 50Hz/60Hz(Auto sensing).

Output

  • AC Voltage Regulation: 230VAC ± 5%.
  • Surge Power: 2000VA.
  • Efficiency(Peak): 90%-93%.
  • Transfer Time: 10 ms (For Personal Computers) 20 ms (For Home Appliances).
  • Waveform: Pure sine wave.

Battery and AC Charger

  • Battery Voltage: 12VDC.
  • Floating Charge Voltage: 13.5VDC.
  • Overcharge Protection: 16VDC.
