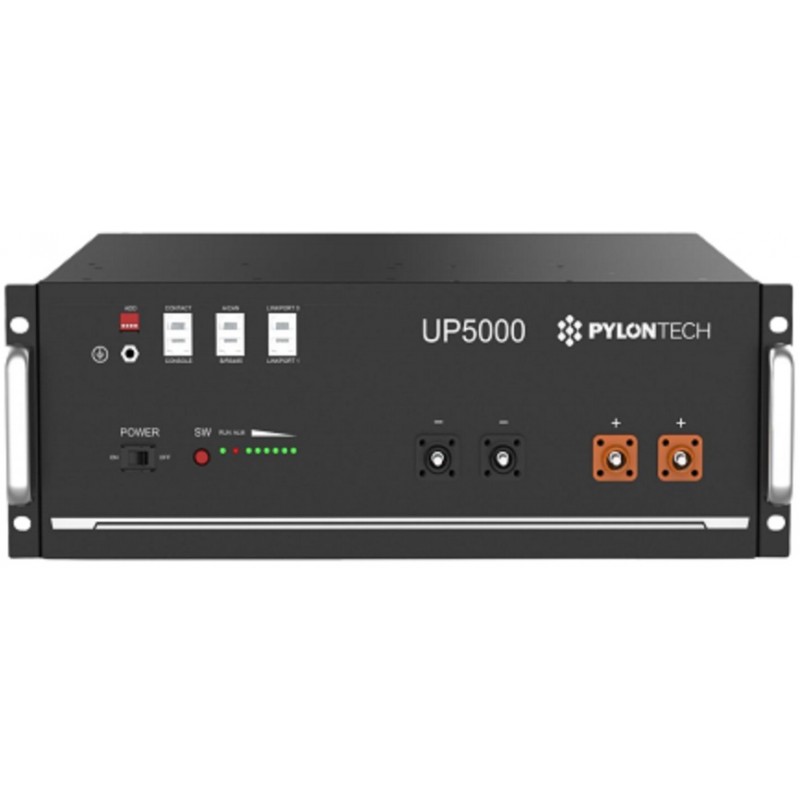

Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery

Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery

Product Features

  • Modular design for ease of expansion.
  • Higher usable capacity resulting in less battery modules installed.
  • Usable capacity 4 560Wh.
  • Parallel Capability of up to 16 units.
  • Allows for large installation of up to 72.96kWh with no LV Hub.
  • Intelligent BMS protecting battery cells.
  • 95% DoD with more usable capacity.
  • RS485 and CAN compatible.
  • Comes with a 5-year warranty non-extendable.

Original price was: £1,689.00.Current price is: £1,359.00.

Category Tag

Related products

Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery

Specifications
Nominal

  • Nominal Voltage（V）: 48.
  • Nominal Capacity（Wh）: 4800.
  • Useable Capacity（Wh）: 4560.

Physical

  • Dimension（mm）: 442*420*165.
  • Weight（Kg）: 41.

Electrical

  • Discharge Voltage（Vdc）: 44.5.
  • Charge Voltage（Vdc）: 52.5 ~ 53.5.
  • Charge / Discharge Current（Amps）: 50（Continuous） 74-89(60sec） 90-200A（Peak@15sec）.

Others

  • Communication Port: RS485,CAN.
  • Single string quantity(pcs): 16.
  • Altitude (M): ＜4000.
  • IP rating: IP20.
  • Design life: 10+ Years.
  • Cycle Life: >4,500.
