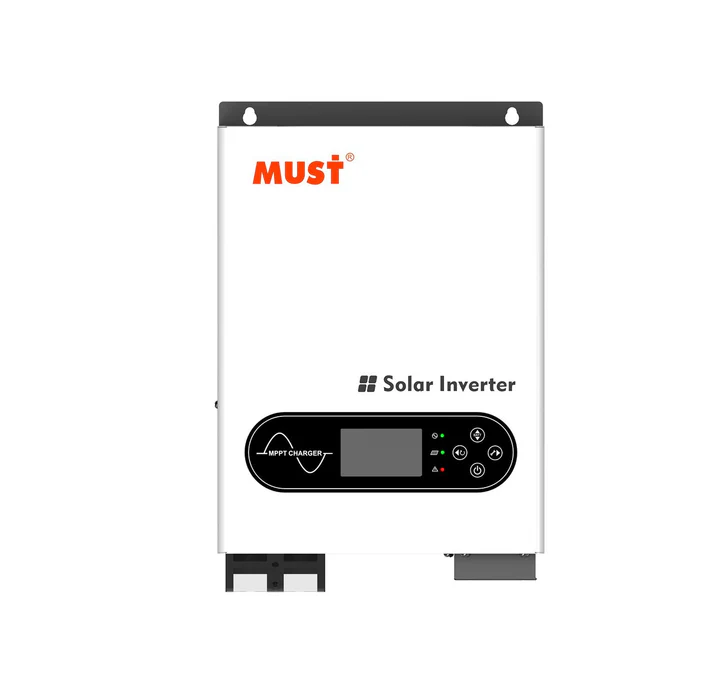

Must 3.6kw 3600w Solar Hybrid Inverter 100Amp 24v MPPT PV1800 PV18-3624 Eco

PV1800 ECO is a multi-function inverter/charger, combining functions of
inverter, MPPT solar charger and battery charger to offer uninterruptible power
support in portable size. PV1800 ECO Series can run without battery.
The Maximum PV input voltage can reach 400V/450V/500V, which can help
customers make full use of solar energy.

Features:
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Wide PV input voltage range
■ Can provide the power to the load without battery
■ Combining solar system, AC utility, and battery power source to
supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support RS485,CAN monitoring function
■ Dual outputs for smart load management
■ Can communicate with lithium batteries (CAN port)

Inverter Mode:
Rated Power(Main+Second Load):3600VA/3600W
DC Input: 24VDC, 135A
AC Output: 230VAC, 50/60Hz, 15.7A
Output Power Factor: 1.0
AC Charger Mode:
AC Input: 230VAC, 50/60Hz, 17.7A,10
DC Output: 24VDC,60A

Solar Charger Mode:
Rated MPPT Charger Current: 100A
MPPT Voltage Range(Typ): 30-320VDC
Max Solar Voltage(VOC): 400VDC
Max PV Input Current: 18A
Max MPPT Power: 4000W
Max.Charge Current: 100A

What’s in the box
1x Inverter
1x User Manual
