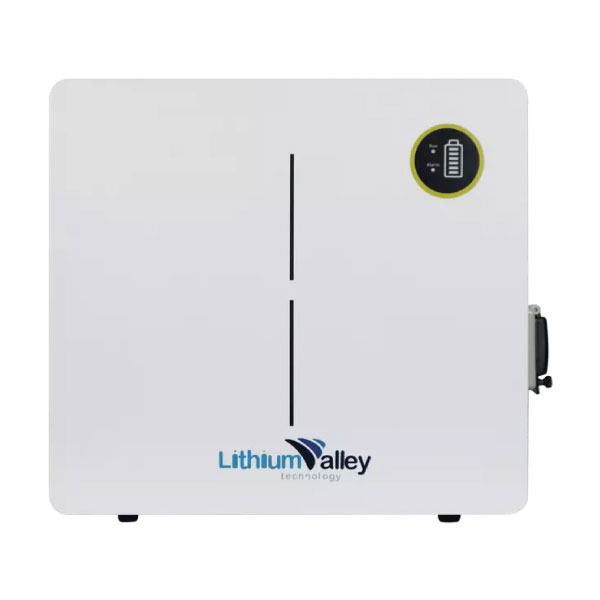

Lithium Valley 5.12kWh Wall Mounted Battery. 51.2V, 100AH

• Lithium Valley 5kW 100Ah LiFePo4 Wall Mounted Lithium Ion Battery – LV-BAT-W5.12AC
• Model LV-BAT-W5.12AC
• Includes Power Cable Kit
• Wall Mounted LiFePo4 Battery.
• Unique Design – Wall Mount Design.
• Flexible Capacity – Max 15pcs in Parallel to Extend Capacity.
• Safe & Reliable – Lithium Iron Phosphate (LFP) Cell.
• LED Display – SOC, Battery Status.
• Easy Installation – Quick Plug in +/- & Parallel Connection.
• Nominal Voltage: 51.2V
• Rated Capacity: 100Ah
• Energy: 5120Wh
• Battery Impedance: ≤ 50 mΩ
• Charging Cut-off Voltage: 56.16V
• Discharge Cut-off Voltage: 45.6V
• Recommend Charge Current: 0.5C 50A
• Maximum Charge Current: 0°C to 15°C: 50A; 15°C to 45°C: 100A
• Maximum Continue Discharge Current: 100A, -20°C to 60°C; 65±20%RH
• Operating Temperature Range: -20°C to 60°C
• Storage Environment (50% State of charge): 20°C to 45°C in 3 months; 25±3°C over 3 months; Humidity at 65±20%RH
• Environment: Indoor
• Installation Type: Wall Mount
• Cell Technology: Lithium-iron Phosphate (LiFePo4)
• Life Cycle: 6000 times @ 80%DOD
• Cooling: Natural Connection.
• Protection Rating: IP54
• Communication: RS232/CAN/RS485
• Certifications: CB 62619:2017, UN38.3, MSDS CE EMC EN61000-6-2/4
• Weight (Net): 47.2Kg
• Easy Commissioning
• Dimensions (H x W x D): 520 x 470 x 141.5 mm
• Refer To Brochure For Detailed Product Specifications.
• Product might vary from depicted images.
• 10 Year Limited Product Warranty. T & C’s Apply
