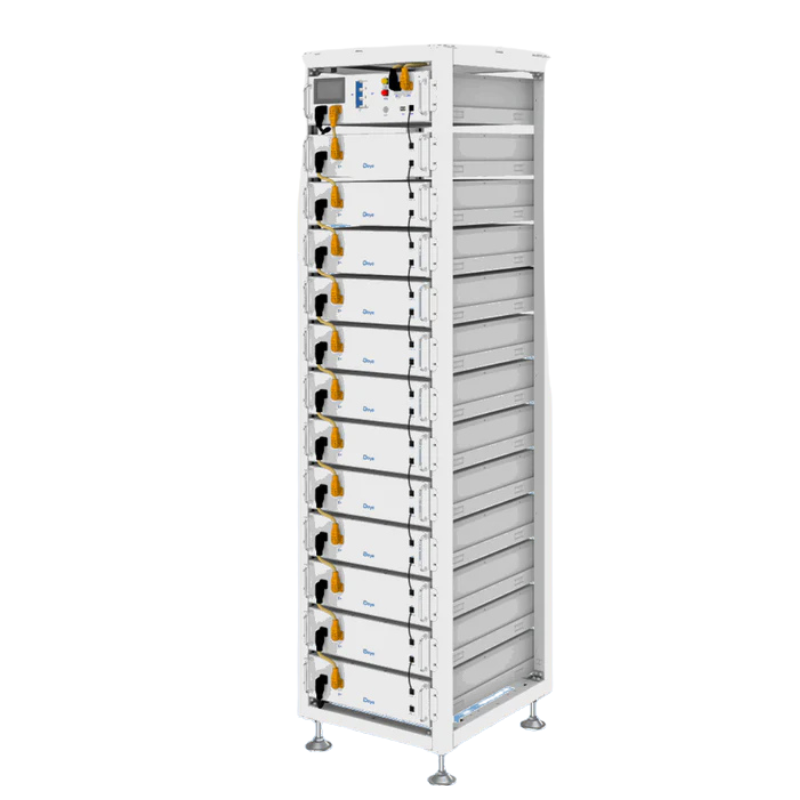

Deye Battery 61.44kWh HV BOS-G Set

Choose Deye Battery 61.44kWh HV BOS-G Set for seamless power. Deye Battery 61.44kWh and Deye Bos-G deliver smooth performance. Thus, Deye H/V Battery is effective. The Deye Battery 61.44kWh BOS-G HV Set is a high-voltage lithium-ion battery storage system for home and commercial applications.

12 x 12 x Deye BOS-G 5.12kwh HV Lithium Batteries.
1 x Deye Cluster Control Box BMU with all cables.
1 x Deye HV Battery 3U Rack (12+1).

Deye Battery 61.44kWh HV BOS-G Set ensures excellence. Notably, Deye Battery 61.44kWh and Deye Bos-G offer reliable solutions. Therefore, choose Deye BOS-G 5.12kWh.
Explore the Deye Battery 61.44kWh HV BOS-G Set, a battery system with a modular design for scalable energy storage, ensuring safety, longevity, and superior performance.

A BREAKDOWN OF ITS KEY FEATURES:

High-Density LiFePO4 Batteries – This battery is known for its safety, long lifespan, and good stability.
Modular Design: Built with individual 5.12 kWh battery modules that can be easily added or removed.
Each Deye battery module offers a nominal capacity of 100Ah and provides 5.12kWh of energy.
Deye BOS-G 5.12kWh series offers a recommended depth of discharge (DOD) of 90%.
This BOS-G series features a Cluster Control Box BMU designed for seamless integration.
SPECIFICATIONS
Capacity: 100Ah x 12.
Cell Chemistry: LiFePO4.
Batteries in series: 12 x 5.12kWh
Nominal Voltage: 614.4V.
Operating Voltage: 538-691V.
Energy: 61.44kWh.
Usable Energy: 55.29kWh.
Weight Approximate: 628kg.
Dimension (W/D/H): 580*590*2200mm.

APPLICATIONS:

Backup power systems: Provides reliable power.
Commercial Energy Storage: Suitable for businesses to improve energy efficiency and reduce reliance on the grid.
Off-Grid Systems: Can be part of a complete solar power system for locations without grid connection.
