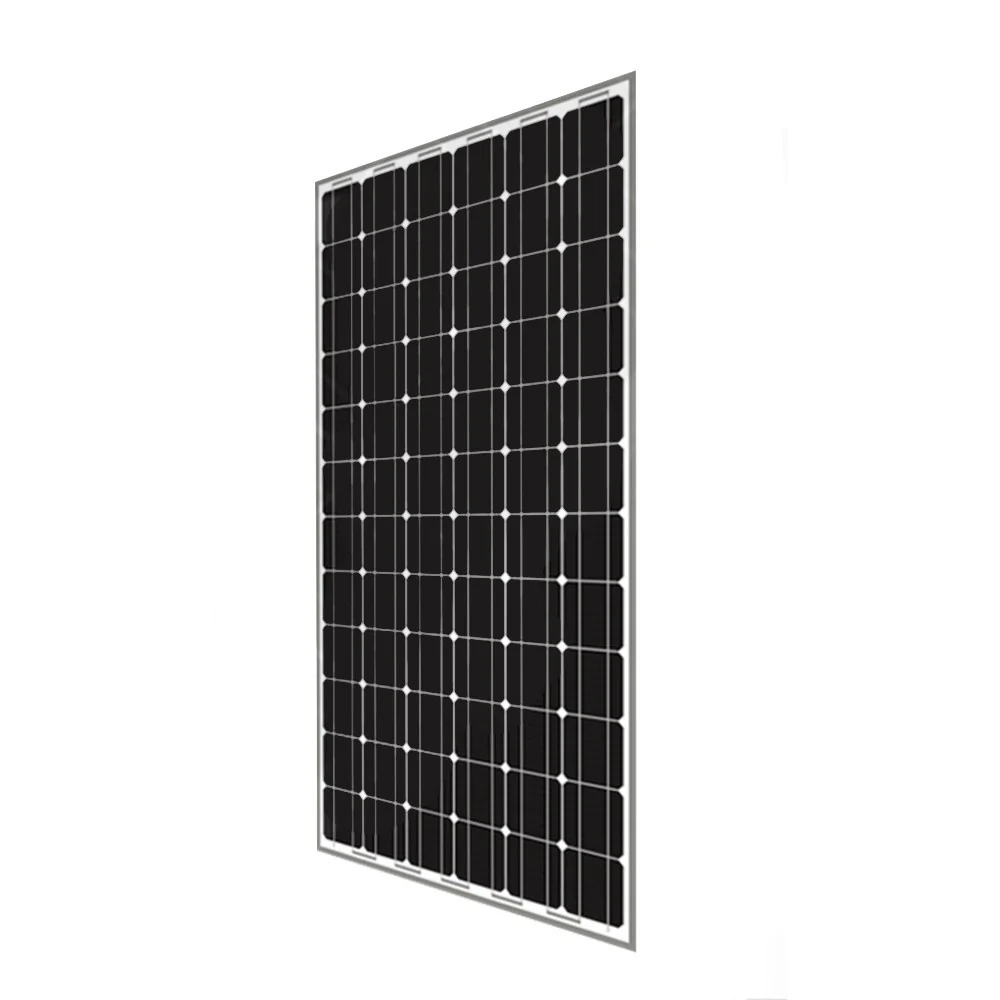

Canadian Solar 590W TopHiKu6 Super High Power N-Type TOPCon Solar Panel – MC4-EVO2, F30 Frame

The Canadian Solar 590W TopHiKu6 is a next-generation super high-power photovoltaic module built with advanced N-type TOPCon technology, delivering outstanding efficiency, reliability, and long-term energy yield. Designed for commercial, industrial, and utility-scale solar installations, this module maximizes performance while reducing overall system costs and Levelized Cost of Energy (LCOE).

With an impressive 22.8% module efficiency, robust mechanical strength, and excellent performance in hot and challenging climates, the TopHiKu6 590W module is an ideal choice for high-capacity solar projects demanding superior output and durability.

Key Features & Benefits

More Power

• 590W rated output for maximum energy generation
• Up to 22.8% module efficiency
• Advanced N-type TOPCon cell technology
• Excellent anti-LeTID and anti-PID performance
• Lower annual power degradation for higher lifetime yield
• Superior temperature coefficient for hot-climate performance
• Improved shading tolerance for complex installations
• Lower BOS and reduced system cost

More Reliable

• Reduced impact from micro-cracks
• Certified mechanical strength:
• Snow load up to 5400 Pa
• Wind load up to 2400 Pa
• Durable F30 anodized aluminium frame
• Designed for long-term, high-performance operation

Technical Specifications

• Rated Power: 590W
• Module Efficiency: 22.8%
• Cell Technology: N-Type TOPCon
• Module Type: Monocrystalline, High-Power
• Width: 1,134 mm
• Height: 2,278 mm
• Frame: F30 anodized aluminium
• Connector Type: Staubli MC4-EVO2
• Maximum System Voltage: 1500V

Warranty

• Product Warranty: 12 years
• Linear Power Output Warranty: 30 years

Ideal Applications

• Utility-scale solar power plants
• Commercial & industrial PV systems
• Ground-mounted solar projects
• High-efficiency installations in hot climates
• Projects targeting low LCOE and long asset life

Installation Disclaimer

This product must be installed by a qualified electrician or certified solar technician. All installations must comply with local electrical wiring regulations and standards. The supplier will not be held liable for malfunctions resulting from incorrect installation.
