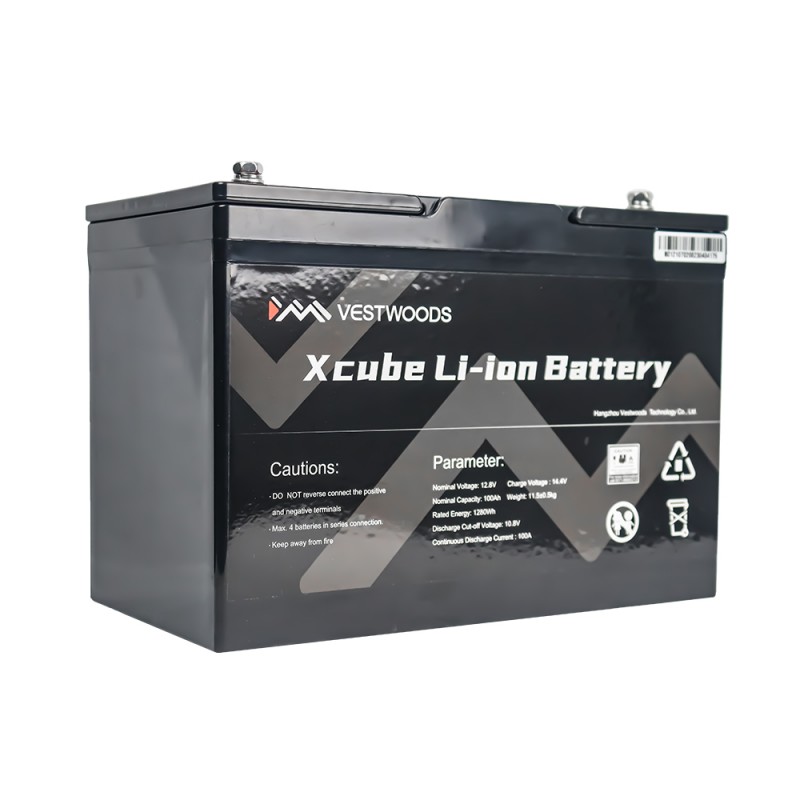

Vestwoods 100Ah 12.8V 12V Lithium-ion (LiFePO4) Battery

The 12.8V 100 Ah battery is (LiFePO4) chemistry and has an integrated battery management system making it the perfect portable power solution.
Lithium Iron Phosphate battery technology has greater energy density and lifecycle, it is a stable chemistry that maintains a high thermal runaway, resulting in a long life at low costs.

Features

– Cell Balancing: Extend the lifetime of the battery
– Current: >300mA
– Safe and Reliable: The safest LFP battery cell
– Bluetooth built-in: Easy to access battery status
– Battery management system with chip
– Supports series and parallel use
– High compatibility – Support to connect with lead-acid battery

Voltages:

– Recommended Charge Voltage/V: 14.4 – 14.6
– Nominal Voltage/V: 12.8
– Recommended Float Voltage/V: 13.6
– Discharge Cut-off Voltage/V: 10.8

Electrical

– Nominal Voltage/V: 12.8
– Nominal Capacity/Ah: 100
– Rated Energy/Wh: 1280
-BMS Function: Overcharge, over-discharge, overcurrent, and temperature protection
– Recommended Charge Voltage/V: 14.4 – 14.6
– Discharge Cut-off Voltage/V: 10.8
– Standard Charge Current/A: 50
– Max. Charge Current/A: 100
– Continuous Discharge Current/A: 100
– Peak Discharge Current/A@5S: 300
– Voltage Configurations: 12, 24, 36 or 48V
– Increase voltage in series or increase capacity in parallel
– Maximum time between changes: 3 months
– Monitoring: Bluetooth

Mechanical:

– Dimensions: 307*169*213
– Weight: Approx. 11.5kg
– Terminal: M8
– Casing material: ABS

Environment:

– Working Temperature Range/°C: Charge: 0~55 Discharge: -20~60
– Humidity Range/RH: <95%
– Storage temperature/°C: 15~35
– IP protection level: IP65
