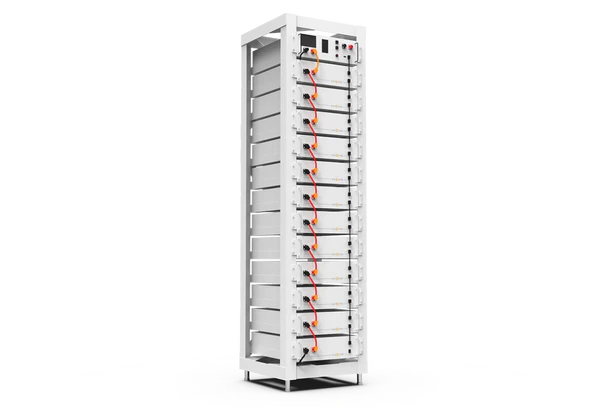

Sunsynk Battery 61.44kWh High Voltage Series
Technical Data
- Battery System Power (kWh) – 61.44
- Charge/Discharge Rate (Max) – 1C
- Max Charge / Discharge Current (A) – 100
- Module Capacity (Ah) – 100
- Operating Voltage (V) – 538~691
- Operating Temperature Range – Charge: 0~55 ºC / Discharge: -20~55 ºC
- Battery Cell Chemistry – 61.44
- Dimension (W×D×H mm) – 13th level: 589×590×2240
- Total Weight (12 Battery Modules, 1 Rack) (kg) – 628
- Weight of Each Battery Module / Battery Rack (kg) – 44 – 85
- Operating Altitude – ≤2000m
- Relative Humidity Range – 5%~85% (RH)
- Warranty Period – 10 years
- Enclosure IP Rating – IP20
- Certifications – EN/IEC 61000-6, IEC62619, UN38.3
Original price was: $27,397.00.$23,321.00Current price is: $23,321.00.
Related products
- Lithium Batteries
BSL Battery 15kw B-LFP51.2-300Ah
Original price was: $4,799.00.$4,325.00Current price is: $4,325.00. Add to cart - Inverters
2000W 12V ECCO Pure Sine Wave Inverter UPS + 1x 200AH Deep Cycle Gel Battery
Original price was: $549.00.$502.00Current price is: $502.00. Add to cart
Sunsynk Battery 61.44kWh High Voltage Series
LITHIUM-ION STORAGE SYSTEM – HIGH VOLTAGE SERIES
| Battery Module – HV48100 BMU (Battery Module Unit 1P12S) | |
|---|---|
| Nominal Voltage | 51.2V |
| Voltage Range | 45.5-58V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Continuous Discharging/Charging Current | 50Adc |
| Chemistry | Lithium Iron Phosphate (LFP) |
| Communication | CAN, RS485 |
| Dimensions (W*D*H) | 19.06″ x 20.87″ x 5.51″ 484 x 530 x 140mm |
| Weight | 94.8lbs 43kg |
| HV 48100 System | |
|---|---|
| Nominal System Voltage | 256~768V |
| System Voltage Range | (45.5V~58V)*n |
| Nominal System Capacity | 100Ah |
| Nominal System Energy | 25.6~76.8kWh |
| Continuous Charge/ Discharge Current | 50Adc |
| BMU Qty. (Variable) | 5~15 |
| Communication | CAN, RS485, Dry Contact, WiFi |
| Recommended Depth of Discharge | 80% |
| Dimensions (W*D*H) | 23.62″ x 25.2″ x 61.22″ 600 x 64 x 1555 mm |
| Weight (Cabinet+BCU+BMU) | 197.5 lbs + 29.32 lbs + 94.8 lbs*n 89.6 kg + 13.3 kg + 43 kg*n*Note: “n” represent the quantity of BMU, from 5 to 15 pcs. |
| Operation Humidity | 0~95%, No Condensation |
| Operating Temperature | Charge: 32°F~134.6°F/0°C~57°C Discharge: -0.4°F~134.6°F/-18°C~57°C |
| Ingress Protection | IP20 |
| Cycle Life | ≥6000 cycles |
| Altitude | < 13123.35ft / 4000m |
| Warranty | 10 Years |
