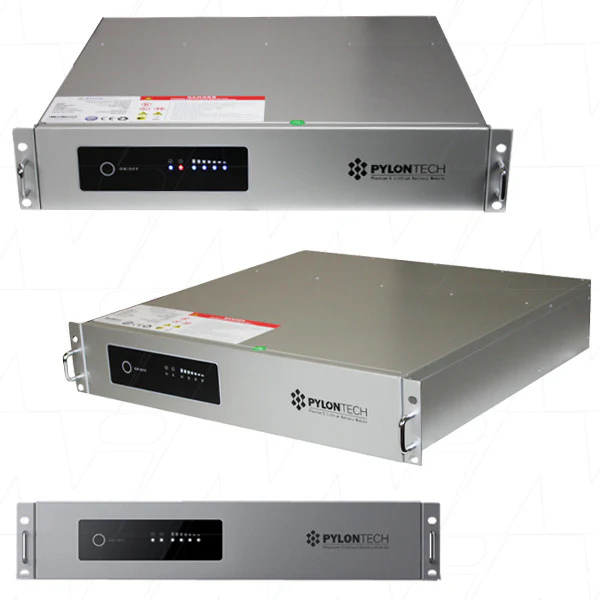

Pylontech Phantom-S 48V 50Ah Rack Mounted LiFePO4 Battery Module

Phantom-s is a member of HESS battery system designed by Pylontech. Its long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.

Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.  Premium Look Rack Mount Metal Enclosure + Cables PHANTOM-S

The Phantom-S is the same size and specifications as the US2000. The Phantom-S has an aesthetically pleasing facia with all cabling at the rear of the module.

Features:

• Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
• Usable capcity of 2.16kWh @ 48 VDC
• Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
• Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
• Modular design gives the you the power to design systems from 2.4kWh to a commercial sized 480kWh
• Compatible with many available Hybrid inverters
• Safety Cert.TüV, CE, R0HS, UN38, IEC62619
• Communication Protocols: CAN, RS485, RS232
• 15+ Year Design Life
• 10 year Warranty
