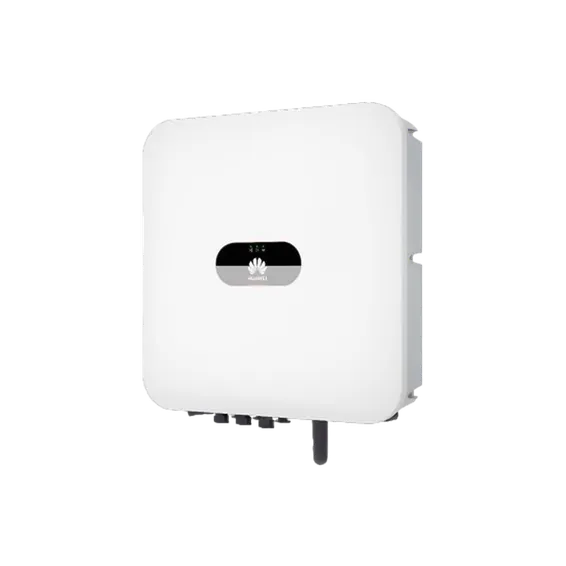

Huawei 6kW 1-Phase FusionSolar Smart Residential Inverter

The Huawei 6kW 1-Phase FusionSolar Smart Residential Inverter is a high-efficiency, intelligent solar inverter designed for modern homes and small residential solar systems. Built on Huawei’s advanced power electronics and smart energy management technology, this inverter delivers excellent performance, safety, and long-term reliability for grid-tied and hybrid solar applications.

With optional battery backup support, high PV input capacity, and seamless integration with Huawei’s LUNA2000 energy storage system, the FusionSolar inverter provides homeowners with greater energy independence and smart control over electricity usage.

Key Features & Benefits

• 6kW rated output power for residential solar systems
• High efficiency up to 98.4% for maximum energy yield
• Smart energy management with FusionSolar monitoring platform
• Compatible with Huawei LUNA2000 ESS batteries (5–30kWh)
• Optional Backup Box (B0) for essential load power during outages
• Optimizer-ready for enhanced safety and module-level performance
• Compact, lightweight design for easy installation
• Trusted Huawei reliability and build quality

On-Grid Output Specifications

• Rated Output Power: 6000W
• Maximum Apparent Power: 6600VA
• Rated Output Voltage: 230VAC / 50Hz
• Maximum Output Current: 27.3A

Off-Grid / Backup Output (Optional Backup Box B0)

• Maximum Apparent Power: 5000VA
• Rated Output Voltage: 230VAC / 50Hz
• Maximum Output Current: 22.7A

PV Input Specifications

• Maximum PV Power: 9000Wp
• Maximum Input Voltage (Voc): 600V
• Start-Up Voltage: 100V
• MPPT Operating Voltage Range: 90V – 560V
• Rated Input Voltage: 360V
• MPPT Trackers: 2 (1 string per MPPT)
• Max Input Current per MPPT: 12.5A
• Max Short-Circuit Current (Isc): 18A
• Optimizer Compatibility:

• • SUN2000-450W-P

  • SUN2000-600W-P

Battery (DC) Input

• Compatible Battery: Huawei LUNA2000 ESS (5kWh – 30kWh)
• Operating Voltage Range: 350 – 560VDC
• Maximum Operating Current: 15A
• Maximum Charge Power: 5000W
• Maximum Discharge Power: 5000W

Efficiency & Communication

• Maximum Efficiency: 98.4%
• Display & Communication:
• RS485
• Built-in WLAN
• Fast Ethernet via SDONGLEA-05 (optional)
• 4G / 3G / 2G via SDONGLEA-03-EU (optional)

Physical Specifications

• Dimensions (W × H × D): 36 × 39 × 15 cm
• Gross Weight: 10.0 kg

Installation & Warranty Notice

This inverter must be installed by a Huawei-preferred installer or a qualified electrician with a Wireman’s licence. A Certificate of Compliance (CoC) must be issued after installation.
Failure to provide the required documentation during a warranty claim may void the warranty.

Ideal Applications

• Residential rooftop solar systems
• Smart homes with battery backup requirements
• Grid-tied solar installations
• Hybrid solar + storage solutions
