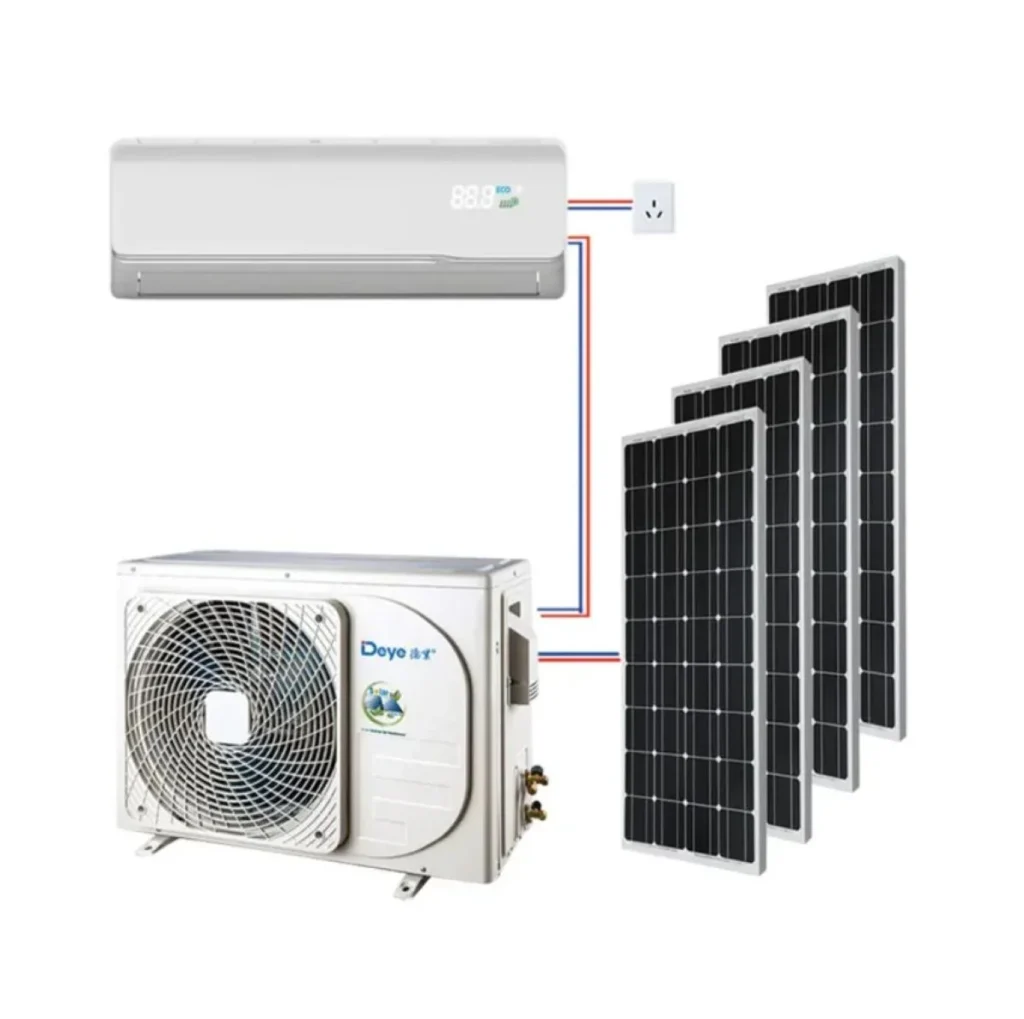

Deye 24,000 BTU Hybrid Solar Air Conditioner – 7800W Heating & Cooling

The Deye 24,000 BTU Hybrid Solar Air Conditioner is a high-capacity AC/DC hybrid cooling and heating solution engineered for large homes, villas, offices, shops, and commercial spaces. Designed to dramatically cut electricity costs, this system operates partially or fully on solar power during the day, without the need for batteries, inverters, or charge controllers.

When sunlight is available, the unit prioritizes solar energy, delivering up to 100% daytime energy savings. At night or during low solar conditions, it seamlessly draws minimal grid power while maintaining strong performance and efficiency.

Smart Features

• Daily & weekly programmable timers
• Real-time performance monitoring
• AC & DC power consumption tracking
• Automatic AC / DC power balancing

Key Features & Benefits

• 24,000 BTU cooling capacity for large areas
• Hybrid AC + DC operation (solar, grid, or combined)
• Solar-only daytime operation for zero electricity cost
• High-performance T3 DC inverter compressor
• Configurable AC grid power limiter (0–600W)
• No inverter, battery, or charge controller required
• Wide operating temperature range: -10 °C to 58 °C
• Eco-friendly R410A refrigerant
• Long warranty coverage for peace of mind

Technical Specifications – 24,000 BTU Model

Power & Input

• AC Power Supply: 1-Phase 208–240V / 50–60Hz
• DC (PV) Input Voltage: 80–380V (panels in series)
• DC Input Current: ≤18A
• Recommended PV Setup: 6–8 × 330W solar panels (series)

Cooling & Heating

• Cooling Capacity: approx. 7,000W–7,400W / 24,000 BTU
• Heating Capacity: 7,800W
• Optimized DC operation for high efficiency
• Excellent performance in high ambient temperatures

Compressor & Fans

• Compressor Type: DC inverter rotary (T3)
• Indoor Fan Motor: High-efficiency BLDC
• Outdoor Fan Motor: High-efficiency BLDC

Installation & Design

• Electronic Expansion Valve: Yes
• Hybrid architecture allows seamless switching between solar and grid
• Simplified installation with reduced electrical infrastructure
• Designed for continuous operation under heavy load

Ideal Applications

• Large residential rooms & villas
• Offices & commercial buildings
• Shops, restaurants & clinics
• Warehouses & open-plan spaces
• Solar-powered or energy-conscious buildings
